Qbic Luminen Pro

Smart 3-in-1 Room Control

The Qbic Luminen Pro Series offers high-performance touchscreen PCs for modern building and room control. This 3-in-1 solution combines a touchscreen, a gateway with I/O ports, and a miniserver in a single device—ideal for businesses, public institutions, hotels, residential buildings, and, thanks to its antimicrobial surface, also for use in healthcare settings.

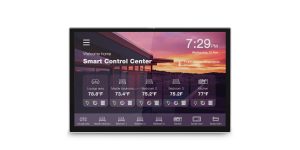

The panels centrally control lighting, climate, media technology, blinds, doors, and windows and are compatible with KNX and CAN bus systems. AI-powered features such as integrated facial recognition, presence sensors, and a microphone with Active Noise Control enable personalized operation and secure access control.

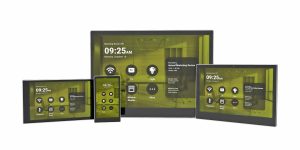

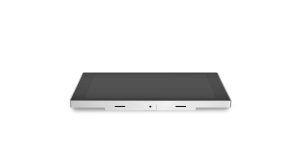

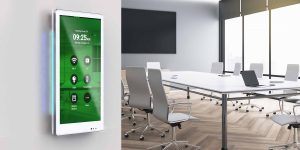

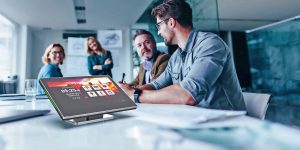

Equipped with a powerful processor, integrated NPU, and a choice of Android or Linux, the devices deliver high performance for demanding smart building applications. The Basic Series is available in 5.5- and 8-inch models, while the Pro Series comes in user-friendly 10- and 15.6-inch models. The panels can be flush-mounted, used as a desktop terminal, or placed freestanding. PoE support ensures easy installation.

A free management platform for updates, remote control, and remote configuration rounds out the system—for flexible, efficient, and sustainable room control from a single source.


To our product overview of e-paper and door displays >>

Tech. Specifications

Brand
Qbic
Product
Luminen 5 / 8 : Luminen Pro: 10 / 15
Operating System
Android 13 / Yocto (embedded Linux)
CPU Family
ARM MediaTek
CPU Assembly
Luminen 5/8: QuadCore Cortex-A53 4x 1.8GHz Luminen Pro 10/15: HexaCore: Cortex-A78 2x 2,0GHz + Cortex-A55 4x 2,0GHz
RAM
4GB LPDDR4
RAM Placement
32GB eMMC
Connections external
optional: RS485 Luminen 5 / 8: 1x USB Micro, USB OTG Luminen Pro 10 / 15: 1x USB 3.0 A, USB Type-C
Audio Connections
1x 3,5 mm Stereo (MIC-in and Audio-out)
Display Size/Resolution
5.5": 720 x 1280 / 8": 1280 x 800 / 10.1": 1920 x 1200 / 15.6": 1920 x 1080
Touchscreen
Touchscreen (Multitouch)
Dsplay Brightzness
Luminen: 300cd/m2 / Luminen Pro: 350cd/m2
Other features
Image formats: JPEG/BMP/GIF/PNG Audio formats: MPEG/OGG/AAC Bluetooth (BLE Beacon) Dual microphones Camera: 1x 5MP fixed focus (Luminen 8, 10, 15) Single mount (Luminen 5) Single mount, tabletop (Luminen 8) Single mount, tabletop, surface and glass mounting (Luminen 10) Surface and glass mounting, tabletop (Luminen 15) Ambient light sensor Proximity sensor 1 x RJ45 (10M/100M/1000M), Gigabit Ethernet with Time Sensitive Networking (TSN)
Dimensions
80.8 x 143.4 x 12.5(24.8) mm (Luminen 5), 213.2 x 127.6 x 13.5(27.5) mm (Luminen 8), 241.9 x 173.4 x 20.8 mm (Luminen Pro 10), 373.5 x 243.1 x 26.2 mm (Luminen Pro 15)
Operating Temperature
0°C ~ 40°C
Humidity
5% - 85%
Enclosure
Plastic and aluminum
Colors
Black
Certifications
CE
